- 产品描述
-
光纤激光器
Application:
金属打标
Metal marking
- 产品特性
-
光纤激光器
Pulsed Fiber Laser
Specifications:
Model
GYFL-1064-20A
GYFL-1064-30A
GYFL-1064-50A
Wavelength
1060nm~1080nm
Beam quality(M2)
<1.5
<1.5
<1.5
Nominal average output power
>20W
>30W
>50W
Single pulse energy
>0.67mj@29.4KHz
>1mj@29.4KHz
>1.1mj@45KHz
Pulsed duration (FWHM)
90~110ns
110~130ns
110-130ns
Pulse repetition rate
29.4KHz-62.5KHz
45KHz-150KHz
Beam Diameter
6~8mm
Output fiber cable length
1.8M(customized)
1.8M(customized)
1.8M(customized)
Working voltage
24V
Power consumption
>120W
>150W
>240W
Cooling method
Air-cooling

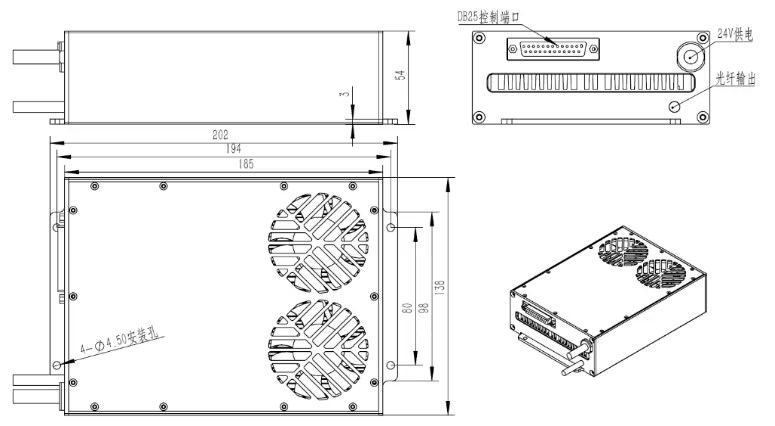

Dimension(W×D×H)
202mm×138mm×54mm
232mm×160mm×74mm
- 技术参数
-
GYFL-1064-20A//30A
GYFL-1064-50A
